September 2, 2020
Astronomers have used NASA's Chandra X-ray Observatory to record material blasting away from the site of an exploded star at speeds faster than 20 million miles per hour. This is about 25,000 times faster than the speed of sound on Earth.
Image Credits: NASA/CXC/Univ of Texas at Arlington/M. Millard et al.
Astronomers have used NASA's Chandra X-ray Observatory to record material blasting away from the site of an exploded star at speeds faster than 20 million miles per hour. This is about 25,000 times faster than the speed of sound on Earth.
The Kepler supernova remnant is the debris from a detonated star that is located about 20,000 light years away from Earth in our Milky Way galaxy. In 1604 early astronomers, including Johannes Kepler who became the object's namesake, saw the supernova explosion that destroyed the star.
We now know that Kepler's supernova remnant is the aftermath of a so-called Type Ia supernova, where a small dense star, known as a white dwarf, exceeds a critical mass limit after interacting with a companion star and undergoes a thermonuclear explosion that shatters the white dwarf and launches its remains outward.
The latest study tracked the speed of 15 small "knots" of debris in the Kepler supernova remnant, all glowing in X-rays. The fastest knot was measured to have a speed of 23 million miles per hour, the highest speed ever detected of supernova remnant debris in X-rays. The average speed of the knots is about 10 million miles per hour, and the blast wave is expanding at about 15 million miles per hour. These results independently confirm the 2017 discovery of knots travelling at speeds more than 20 million miles per hour in the Kepler supernova remnant.
Researchers in the latest study estimated the speeds of the knots by analyzing Chandra X-ray spectra, which give the intensity of X-rays at different wavelengths, obtained in 2016. By comparing the wavelengths of features in the X-ray spectrum with laboratory values and using the Doppler effect, they measured the speed of each knot along the line of sight from Chandra to the remnant. They also used Chandra images obtained in 2000, 2004, 2006 and 2014 to detect changes in position of the knots and measure their speed perpendicular to our line of sight. These two measurements combined to give an estimate of each knot's true speed in three-dimensional space. A graphic gives a visual explanation for how motions of knots in the images and the X-ray spectra were combined to estimate the total speeds.
The 2017 work applied the same general technique as the new study, but used X-ray spectra from a different instrument on Chandra. This meant the new study had more precise determinations of the knot's speeds along the line of sight and, therefore, the total speeds in all directions.
Chandra Watches Kepler's Supernova Remnant Over Time
Video above: A new sequence of Chandra images, taken over nearly a decade and a half, captures motion in Kepler's supernova remnant. Pieces of this debris field are still moving at about 23 million miles per hour over 400 years after the explosion was spotted by early astronomers. Scientists are still trying to determine whether an extremely powerful explosion or an unusual environment around it is responsible for these high speeds so long after the explosion. The Kepler supernova was triggered by a white dwarf that reached a critical mass after interacting with a companion star and exploded. Video Credits: NASA/CXC/A. Hobart.
In this new sequence of the four Chandra images of Kepler's supernova remnant, red, green, and blue reveal the low, medium, and high-energy X-rays respectively. The movie zooms in to show several of the fastest moving knots.
The high speeds in Kepler are similar to those scientists have seen in optical observations of supernova explosions in other galaxies only days or weeks after the explosion, well before a supernova remnant forms decades later. This comparison implies that some knots in Kepler have hardly been slowed down by collisions with material surrounding the remnant in the approximately 400 years since the explosion.

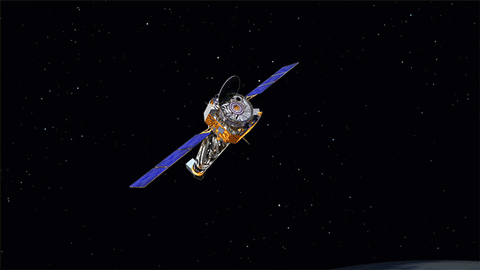

Chandra X-ray Observatory. Animation Credits: NASA/CXC
Based on the Chandra spectra, eight of the 15 knots are definitely moving away from Earth, but only two are confirmed to be moving towards it. (The other five do not show a clear direction of motion along our line of sight.) This asymmetry in the motion of the knots implies that the debris may not be symmetric along our line of sight, but more knots need to be studied to confirm this result.
The four knots with the highest total speeds are all located along a horizontal band of bright X-ray emission. Three of them are labeled in a close-up view. These four knots are all moving in a similar direction and have similar amounts of heavier elements such as silicon, suggesting that the matter in all of these knots originated from the same layer of the exploded white dwarf.
https://chandra.si.edu/photo/2020/kepler/kepler_knots_labels.mp4
One of the other fastest moving knots is located in the "ear" of the right side of the remnant, supporting the intriguing idea that the three-dimensional shape of the debris is more like a football than a uniform sphere. This knot and two others are labeled with arrows in a close-up view.
https://chandra.si.edu/photo/2020/kepler/kepler_knots2_labels.mp4
The explanation for the high-speed material is unclear. Some scientists have suggested that the Kepler supernova remnant is from an unusually bright Type Ia, which might explain the fast-moving material. It is also possible that the immediate environment around the remnant is itself clumpy, which could allow some of the debris to tunnel through regions of low density and avoid being decelerated very much.
The 2017 team also used their data to refine previous estimates of the location of the supernova explosion. This allowed them to search for a companion to the white dwarf that may have been left behind after the supernova, and learn more about what triggered the explosion. They found a lack of bright stars near the center of the remnant. This implied that a star like the Sun did not donate material to the white dwarf until it reached critical mass. A merger between two white dwarfs is favored instead.
The new results have been reported in a paper led by Matthew Millard, from the University of Texas at Arlington, and published in the April 20th, 2020 issue of the Astrophysical Journal. The paper is also available online. The co-authors of the paper are Jayant Bhalerao and Sangwook Park (University of Texas at Arlington), Toshiki Sato (RIKEN in Saitama, Japan, and NASA's Goddard Space Flight Center in Greenbelt, Maryland), John (Jack) Hughes (Rutgers University in Piscataway, New Jersey), Patrick Slane and Daniel Patnaude (Harvard-Smithsonian Center for Astrophysics in Cambridge, Mass.), David Burrows (Penn State University, University Park, Penn.), and Carles Badenes (University of Pittsburgh, Penn).
https://arxiv.org/abs/1905.04475
A paper by Toshiki Sato and Jack Hughes reported the discovery of fast-moving knots in Kepler's supernova remnant and was published in the August 20th, 2017 issue of The Astrophysical Journal. The paper is available online.
https://arxiv.org/abs/1707.08609
The X-ray spectra used by Millard and collaborators were obtained with the Chandra High Energy Transmission Grating.
NASA's Marshall Space Flight Center manages the Chandra program. The Smithsonian Astrophysical Observatory's Chandra X-ray Center controls science from Cambridge Massachusetts and flight operations from Burlington, Massachusetts.
Read more from NASA's Chandra X-ray Observatory: https://chandra.harvard.edu/photo/2020/kepler/
For more Chandra images, multimedia and related materials, visit: http://www.nasa.gov/chandra
Image (mentioned), Animation (mentioned), Video (mentioned), Text, Credits: NASA/Lee Mohon.
