Feb 2, 2022
The Moon
The Moon is set to gain one more crater. A leftover SpaceX Falcon 9 upper stage will impact the lunar surface in early March, marking the first time that a human-made debris item unintentionally reaches our natural satellite.
In 2015 the Falcon 9 placed NOAA’s DSCOVR climate observatory around the L1 Lagrange point, one of five such gravitationally-stable points between Earth and the Sun. Having reached L1, around 1.5 million km from Earth, the mission’s upper stage ended up pointed away from Earth into interplanetary space.
DSCOVR on its Falcon 9 upper stage
This rendered a deorbit burn to dispose of it in our planet’s atmosphere impractical, while the upper stage also lacked sufficient velocity to escape the Earth-Moon system. Instead it was left in a chaotic Sun-orbiting orbit near the two bodies.
The five Lagrange points
Now credible public estimates forecast its impact with the Moon on 4 March at 12:25:39 UTC at a point on the lunar far side near the equator. Follow-up observations should sharpen the accuracy of the forecast, but the approximately 3 ton, 15 m long by 3 m wide upper stage is currently projected to hit at a speed about 2.58 km/s.
Scientifically vital points in space
The European Ariane 5 that recently delivered the James Webb Space Telescope to its observing point flew a mirror trajectory to that of the Falcon 9 – but the good news is that its upper stage has already evaded a comparable fate thanks to a specifically developed and qualified manoeuvre.
View back to Earth from DSCOVR's upper stage
Europe’s Ariane 5 delivered the James Webb Space Telescope to L2, the second Sun-Earth Lagrange point – ‘behind’ instead of in ‘front of’ our planet – but after separating from Webb the upper stage used all its remaining fuel to escape the Earth-Moon system entirely, putting it into a stable heliocentric orbit.
A brief history of human-made Moon impacts
Human-made objects have intentionally impacted the Moon before, starting as early as the 1950s, including Apollo upper stages used to induce ‘moonquakes’ for surface seismometers.
In 2009 NASA crashed its LCROSS mission into the Moon, revealing water in the resulting debris plume, with the LADEE spacecraft doing the same on the lunar farside in 2013. ESA’s Smart-1 spacecraft was crashed into the Moon in 2006, the subject of a worldwide observing campaign.
NASA's LCROSS impacting the Moon
“This forthcoming Falcon 9 impact is a little beyond our usual area of interest, because we are mainly focused on the debris population in highly-trafficked low-Earth orbits, up to 2000 km altitude, as well as geosynchronous orbits around 35 000 km away,” explains Tim Flohrer of ESA’s Space Debris Office.
Falcon 9’s second stage on its way to the Moon
“Our colleagues in the ESA Planetary Defence Office peer further into space, however. They use telescopes around the globe to track Near-Earth asteroids, and sometimes observe human-made objects as well. Extending our own remit into the ‘cislunar’ space between Earth and the Moon has been discussed, due to the increasing use of the scientifically vital Sun-Earth Lagrange points in coming years.”
ESA's Smart-1 ended its mission in a lunar impact
Detlef Koschny, heading ESA’s Planetary Defence Office, adds: “We use telescopic observations to pinpoint the orbits, mainly of natural objects in the space surrounding Earth. Occasionally, we also pick up man-made objects far away from the Earth, such as lunar exploration spacecraft remnants, and objects returning from Lagrange points.”
For international spacefarers, no clear guidelines exist at the moment to regulate the disposal at end of life for spacecraft or spent upper stages sent to Lagrange points. Potentially crashing into the Moon or returning and burning up in Earth’s atmosphere have so far been the most straightforward default options.
Webb’s journey to L2
“The upcoming Falcon 9 lunar impact illustrates well the need for a comprehensive regulatory regime in space, not only for the economically crucial orbits around Earth but also applying to the Moon,” says Holger Krag, Head of ESA’s Space Safety Programme.
“It would take international consensus to establish effective regulations, but Europe can certainly lead the way.”
Artist's view of Ariane 6 and Vega-C
All the launchers developed by ESA during the last decade – Vega, Ariane 6 and Vega C – incorporate a built-in reignition capability, which ensures the safe return to Earth for atmospheric burn-up of their upper stages.
Assessing lunar impact risk
Space rocks hit the Moon all the time. Researchers are interested in quantifying the frequency of these natural lunar impacts. Using a system developed through an ESA contract, the Greek NELIOTA project (Near-Earth object Lunar Impacts and Optical TrAnsients) detects flashes of light caused by small bodies striking the Moon’s surface, particularly across its shadowed face. NELIOTA can determine the temperature of these impact flashes as well as their brightness. From this, the impacting mass can be estimated.
Lunar impact detection
ESA’s Space Safety programme is interested in this research as a way of assessing the number of incoming objects ranging in size from tens of centimetres to metres across. This is useful because the precise number of objects in this range is not known very well.

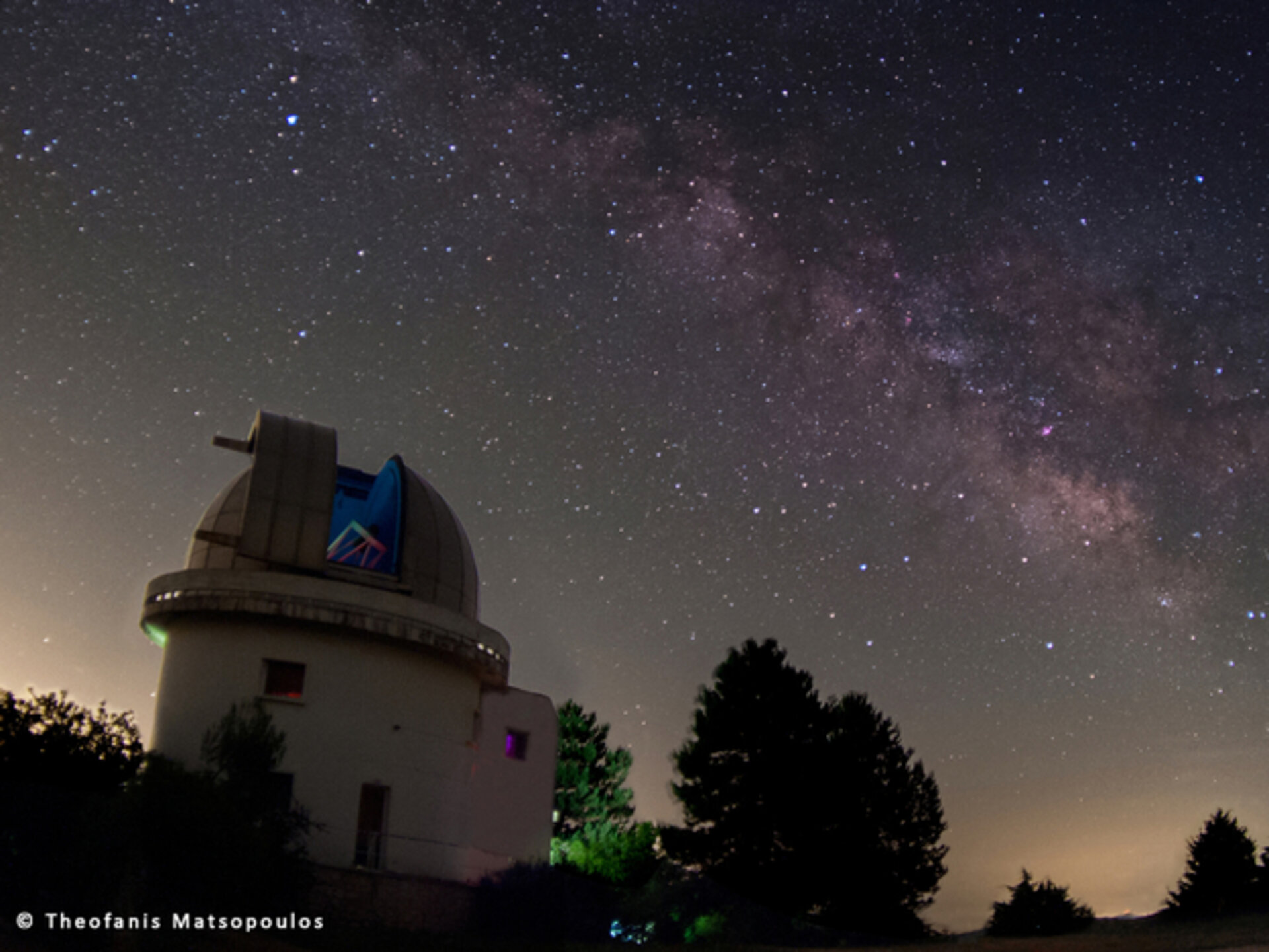

The Kryoneri Observatory – the world's largest eye on the Moon
This research might also be valuable for future lunar colonists. One of the dangers they might face is small meteoroids doing damage to their infrastructure – NELIOTA results are helping to quantify the danger. Without an atmosphere to burn up such bodies, it is likely that future permanent lunar structures will be underground, to provide shielding against impacts as well as space radiation.
