The Ariane 6 launch pad at Europe’s Spaceport in French Guiana now hosts the first example of ESA’s new heavy-lift rocket. This Ariane 6 combined tests model will be used to validate the entire launch system during its ground phase in readiness for the inaugural launch of Ariane 6.
Ariane 6, four-booster configuration (A64); artist's impression
The combined tests include filling tanks, and draining them in case of launch abort, count-down automated sequence, and cryogenic arms disconnection and retraction at a simulated liftoff.
These tests will be carried out under ESA’s authority by an integrated team from ESA, ArianeGroup and French space agency CNES.
Ariane 6 central core verticalisation 11 July 2022
The Ariane 6 combined tests model is highly representative of the flight model. It consists of the core stage and the upper stage, which make up the central core, as well as three pylons shaped like the rocket’s solid boosters and a fully representative but inert mockup of the fourth booster.

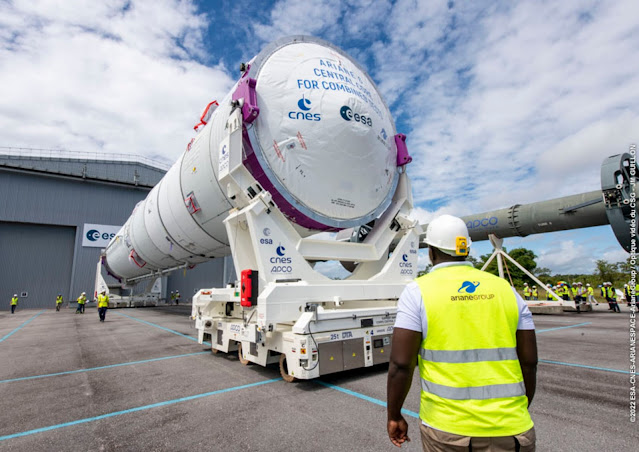

The Ariane 6 combined tests model central core was precisely mated in the purpose-built launcher assembly building, where this task is carried out horizontally. Automated guidance vehicles then brought the assembled core to the launch and, working with the crane at the mobile gantry, raised it to its vertical position.

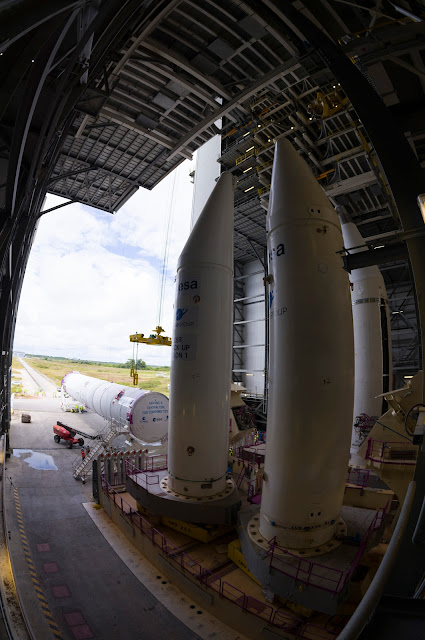

Ariane 6 central core transfer and verticalisation
“This key milestone is a cornerstone of the validation of the Ariane 6 integration concept which was imagined at the very beginning of this wonderful adventure. Achieving it is a source of great pride and a terrific motivator for Ariane 6 teams”, says Jérôme Crubilhé, ESA Mechanical Engineer.
Ariane 6 central core verticalisation 11 July 2022
Before receiving the central core, launch pad systems underwent a battery of tests to check the “cryogenic connection system” of umbilical cords carrying hydrogen and oxygen fuel – liquified at -253C and -183C respectively – that will keep the rocket topped up in the critical moments before liftoff. The system must also deliver helium and nitrogen used for flushing and purging.
Ariane 6 central core transfer and verticalisation
Critically, these systems are designed to remain connected to the rocket until nearly the moment of liftoff. The method demands careful choreography of large mechanical systems but brings several advantages by improving reliability and availability while eliminating some equipment that is not needed in flight. The net result is to reduce the rocket’s dry mass and recurring costs.
Ariane 6 central core transfer and verticalisation
Also, last-moment decoupling does away with some purging lines needed by Ariane 5, to reduce recurring costs and the dry mass of the rocket.
Daniel Neuenschwander, ESA’s Director of Space Transportation, said: “I am delighted to see solid progress towards first flight. Ariane 6 marks a new era in reliable, competitive and autonomous European spaceflight.
Ariane 6 central core verticalisation 11 July 2022
“Ariane 6 is also the foundation for a series of developments which will maintain Europe’s gateway to space into the 2030s.”
Ariane 6 central core verticalisation 11 July 2022
Ariane 6 is a modular launch vehicle using either two or four P120C strap-on boosters, depending on mission requirements. The P120C engine does double duty, also serving as the first stage of ESA’s new Vega-C rocket.
Ariane 6 central core transfer and verticalisation
The reignitable Vinci engine which powers the upper stage allows Ariane 6 to deliver multiple payloads to different orbits on a single launch. After payload separation a final engine burn deorbits the upper stage so that it does not become a debris threat in space.
Ariane 6 central core transfer and verticalisation
Ariane 6 development is project-managed and funded by ESA, which also acts as launch system architect. ArianeGroup is design authority and industrial prime contractor for the launcher system and CNES is prime contractor for the Ariane 6 launch base at Europe’s Spaceport. Arianespace is the launch service provider of Ariane 6.
